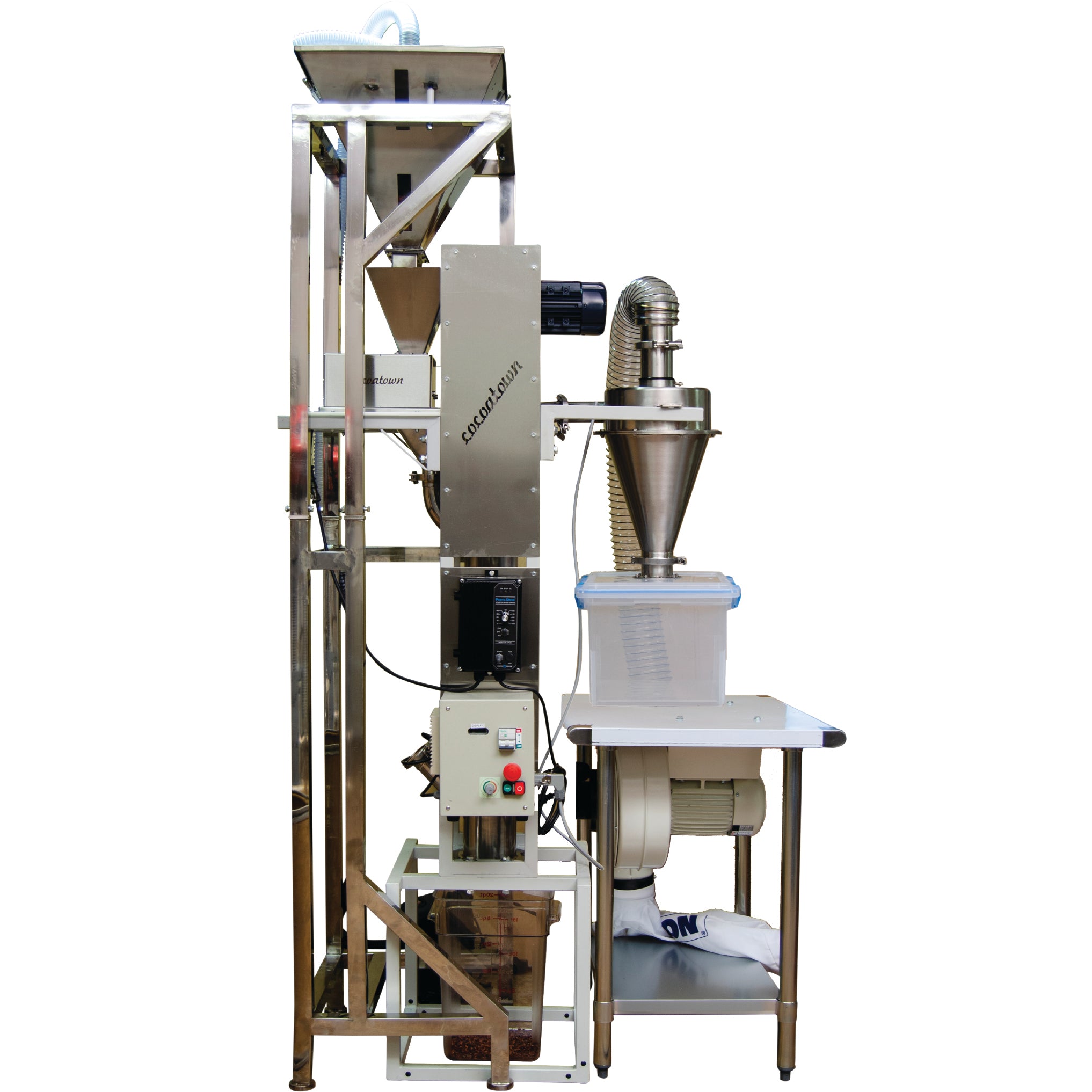

InnoWinno Winnower

$15,000.00

CocoaT InnoWinno Winnower is a revolutionary piece of equipment for artisan chocolate makers.This equipment is based on several years of research and current technology.

The complete system costs US$15000.

All our commercial processing units are configured for 220V power input. If you have any special power input requirements, please contact us at the time of ordering.

Processing & Shipping times: 6 to 8 weeks

Under normal conditions the processing time is 2-3 weeks. If you need urgently, please contact us and we will expedite your order.

For shipping quote contact info@cocoatown.com

Complete the Order Form (click here) and Send it to info@cocoatown.com to get the quote

Description

Commercial InnoWinno Winnower

CocoaT InnoWinno Winnower (Commercial) is a revolutionary equipment for Artisan chocolate makers. This equipment is based on several years of research and the technology. It effectively and cleanly separates nibs from husks in a single pass through. CocoaT winnower complete system comes with  CocoaT Power cracker, bean feeding mechanism and hopper extension. With capacity of approximately 100Kg (220 lbs) per  hour.

CocoaT Power Cracker cracks the beans into nibs and also pulls the skin off from the nibs for efficient separation in the winnower. The bean transfer mechanism transfers the beans on the floor to the hopper extension. All in a compact foot print of less than 12 sq. ft (1.1 sq. m). The closed collection system for the husk ensures there is no dust, making it suitable for any manufacturing environment.The complete system costs US$15000 + S&H.

All our commercial processing units are configured for 220V power input. If you have any special power input requirements, please contact us at the time of ordering.

Read more:

InnoWinno Winnower is a high efficiency, high throughput compact system that separates husk from the cracked cocoa beans to yield clean nibs. This system is cheaper, compact, dust free and more efficient than the models available in the market.
Simply add the cocoa beans to the built in CocoaT power Cracker hopper, the cracked beans are passed through the winnower column and cocoa nibs fall into collection box while husk is collected in a separate container. High yield of nibs with minimum husk ensures high quality nibs, the precursor for the best chocolate. There is negligible amount of nibs in the husk and vice versa with a single pass.

Most of the winnowers in the market are huge machines but still require multiple passes of cracked beans to get acceptable results. Cracking the roasted beans properly is critical to efficient winnowing and most of the crackers in the market are not optimized for efficient winnowing.   Craft chocolate makers felt that significant amount of fine tuning is required for each batch of beans to get decent separation.  They were losing lot of nib powder with husk and getting lot of husk with the nibs in single pass. So we came up with a solution with patented cracker and winnower system that is designed for cacao beans to give best results.

Complete system includes CocoaT power Cracker, controller for power Cracker, blower system, collection boxes and control panel for winnower.

CocoaT Power Crackers

CocoaT power Crackers are very compact and have a foot print of less than 1.5 sq. foot. The special patented rollers in the crackers pull the shell loose from the nibs. The beans are also cracked into bigger and more uniform pieces. Bigger and less variant size nibs means easier winnowing and higher yield of nibs. Better quality, cleaner nibs generate higher profit to chocolate makers.

The CocoaT power cracker can crack about 100 kgs (220 lbs) of cocoa beans in an hour. This compact, stylish unit comes with DC motor, chain drive, metal gears, Stainless steel rollers, and stainless steel hopper. Patented stainless steel rollers are easy to disassemble and reassemble. They are easy to clean and handle. They also last longer.  With this design you do not need to adjust gap to handle different bean sizes.  Optional high capacity hopper extension is available to load larger amount of beans. The special rollers are designed to crack cocoa beans into bigger nibs and at the same time, they also pull the shells away from the nibs. Bigger nibs are easier to winnow and reduces the nib loss.

The metal gears are outside the food contact area for hygiene and clean-ability. The metal drive is covered with stainless steel cover to avoid pinch-points. The 1/8 HP, DC motor is quieter in operation. The speed controller helps in regulating the cracker speed.

Highlights:

  • Compact – saves space & cost
  • Clean nibs – less husk in the nibs = better quality chocolate
  • Clean husk –no nibs with husk = better yield, less wastage =saves money
  • Quiet in operation
  • High Quality stainless steel in food contact areas – hygiene
  • Metal gears for built-in Cracker – Durable, less maintenance needed
  • Cracker Gears outside the food contact area – Hygiene, ease of access
  • Green equipment – uses less energy



Benefits

The winnower contains patented multi-stage separation system to handle challenging situations such as cracked cocoa beans.  . The nibs are collected in the collection tray placed under the winnower column.  All the dust is collected along with the husk in the closed container. So it is hygienic to use this winnower in any manufacturing condition.  The entire system can be adapted to fit your current craft bean-to-bar chocolate process infrastructure.

The whole unit takes about 20 sq. ft. (1.85 sq. m) space. The components in the food contact area are made of high quality stainless steel. The support columns are made of powder coated steel. The blower can be mounted on the wall to further reduce the space taken by the winnower system.

The winnower also comes with bean transfer system and hopper extension.

Bean Transfer Mechanism:

This accessory transports the beans from their container on the floor to the hopper extension. It eliminates the need for manual feeding of the hopper or hopper extension. Together, it eliminates manual work of feeding the beans continuously to the cracker hopper. It is also safer way to fill the hopper and eliminates the need for a worker to climb a ladder with beans on one hand, balancing to climb to fill the hopper.

Hopper Extension:

Hopper Extension holds 40 lbs (20 kgs) of Cocoa Beans and dispenses the right amount of beans into the Power Cracker hopper. This helps with smooth operation of the cracker and winnower. In addition, this accessory eliminates the need for a person to stand next to the cracker and feed it constantly. One can fill up the hopper in minutes and then refill it as necessary. See through window helps to monitor bean level in the hopper.



Financing:

How can we help grow your business?

Apply  for Financing by using below
https://northstar.secure2050.com/app30098.htm
Please contact us info@cocoatown.com or North Star if you have any questions.

Specifications

Specifications:

  • Weight – ~100 Kgs (220 lbs)
  • Footprint – 5’ x 4’
  • Material – High quality Stainless steel in all food contact areas
  • Metal Gears
  • Patented design for cracker and winnower units



It effectively cleans and separates nibs from the husk in a single pass.The InnoWinno winnower is a complete system that comes with CocoaT Power cracker, bean feeding mechanism to transfer the beans from the bean sack on the floor to the hopper extension.This unit has a capacity to winnow up to 100kg (220 lbs) per hour for roasted beans. Results may vary for raw beans. The whole system is very compact and takes less than 16 sq. ft. It is very quiet compared to similar systems from other manufacturers.

Parts

Bean Transfer Mechanism:



This accessory transports the beans from their container on the floor to the hopper extension. It eliminates the need for manual feeding of the hopper or hopper extension. Together, it eliminates manual work of feeding the beans continuously to the cracker hopper. It is also safer way to fill the hopper and eliminates the need for a worker to climb a ladder with beans on one hand, balancing to climb to fill the hopper.



Hopper Extension:



Hopper Extension holds 40 lbs (20 kgs) of Cocoa Beans and dispenses the right amount of beans into the Power Cracker hopper. This helps with smooth operation of the cracker and winnower. In addition, this accessory eliminates the need for a person to stand next to the cracker and feed it constantly. One can fill up the hopper in minutes and then refill it as necessary. See through window helps to monitor bean level in the hopper.

Accessories

Accessories:



Bean transfer kit with hopper extension
